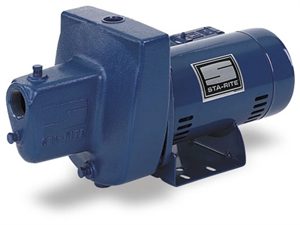

Sta-Rite Snc 1/2 Hp Shallow Well Jet Pump

Call for pricing

The STA-RITE SN Series pump provides excellent performance with good pressure for wells up to 25’ deep. Great for homes, farms, and irrigation.

Product Description

Application

Specifics

Performance

Features

Parts


Application

  • Sprinkling
  • Irrigation
  • Shallow Well Application

Specifics

  • 1/2 HP
  • Suction: 1-1/4”
  • Discharge 1”
  • Voltage: Dual Voltage 115/230 (Comes set on 230 volt)
  • Single Phase
  • Pressure Gauge: Adjustable, set on 30-50 psi

Performance (See Chart Below)

SN Flow Chart

Features

  • Quality construction: Close-grained cast iron body. Drain port provided for easy winterizing.
  • Built-in Jet: High-strength Lexan nozzle and venturi for maximum resistance to corrosion and abrasion. Cleanout plug provided for ease of service.
  • Noryl impeller: Precision-molded for perfect balance…ultra-smooth for highest performance and efficiency.
  • Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
  • Mechanical Shaft Seal: Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication.
  • Motor Windings: Superior insulation materials protect against excessive moisture and contaminants…assure prolonged motor life.
  • Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency, dynamically balanced.
  • Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation.
  • Pump and Motor Shaft: Stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment.
  • Dustproof cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy; ventilating air cannot contaminate vital switching components.
  • Pressure Switch: Professional quality, allows cut-in adjustments.

Parts

Key # Part # Part Link
3 N3-9 Seal Plate Click Here
4 N20-35 Seal Plate Gasket Click Here
6 J105-40P Impeller Click Here
7 L1-25P Diffuser Click Here
8 N20-34 Diffuser Gasket Click Here
10 N176-43 Casing Click Here
11A N34P-17 Jet Nozzle Click Here
11B N32P-66 Venturi Click Here
